Crankshaft Journal Reconditioning With Laser Cladding

Class-Approved Crankshaft Restoration to Original OEM Diameter

Crankshaft journal damage resulting from inadequate lubrication, bearing failure or operational incidents can lead to significant repair costs and prolonged vessel downtime. As a reliable and cost-effective alternative to crankshaft replacement, KIMI offers a Bureau Veritas – approved laser cladding repair process, developed in collaboration with the National Technical University of Athens and other European research institutes.

Our laser cladding procedure restores damaged crankpins and main journals to their original OEM dimensions through controlled material deposition, achieving a strong metallurgical bond, low dilution and minimal thermal impact on the base material. Combined with KIMI’s advanced CNC grinding capabilities and accredited quality assurance, laser cladding provides a technically advanced restoration solution designed to meet OEM specifications and applicable Classification Society requirements, ensuring dimensional accuracy, structural integrity and long-term operational reliability.

Customer Benefits

<h3><strong>Reduced Engine Downtime</strong></h3>
<p>Faster Restoration without Lengthy OEM lead times.</p>

Reduced Engine Downtime

Faster Restoration without Lengthy OEM lead times.

<h3><strong>Significant Cost Savings </strong></h3>
<p>Cost-effective alternative to purchasing a new crankshaft.</p>

Significant Cost Savings

Cost-effective alternative to purchasing a new crankshaft.

<h3><strong>Extended Service Life</strong></h3>
<p>Restoration to OEM standards for long-term durability.</p>

Extended Service Life

Restoration to OEM standards for long-term durability.

Crankshaft Journal Reconditioning Process

01

INITIAL INSPECTION & CONDITION VERIFICATION

PCN Level II personnel perform dimensional checks, hardness mapping, and NDT (UT / MT / PT) to assess wear, ovality, run-out and determine root cause

02

PRE-GRINDING

Controlled grinding removes defects and restores a metallurgically sound substrate

03

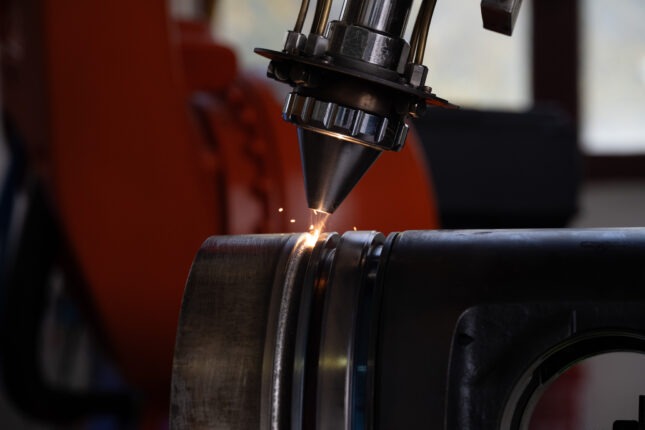

LASER CLADDING DEPOSITION

Using state-of-the-art robotic laser cladding systems, ensuring controlled deposition up to ~10 mm radial with minimal HAZ

04

HEAT TREATMENT | ANNEALING (AS REQUIRED)

Stress relieving to eliminate residual stresses and stabilize the microstructure

05

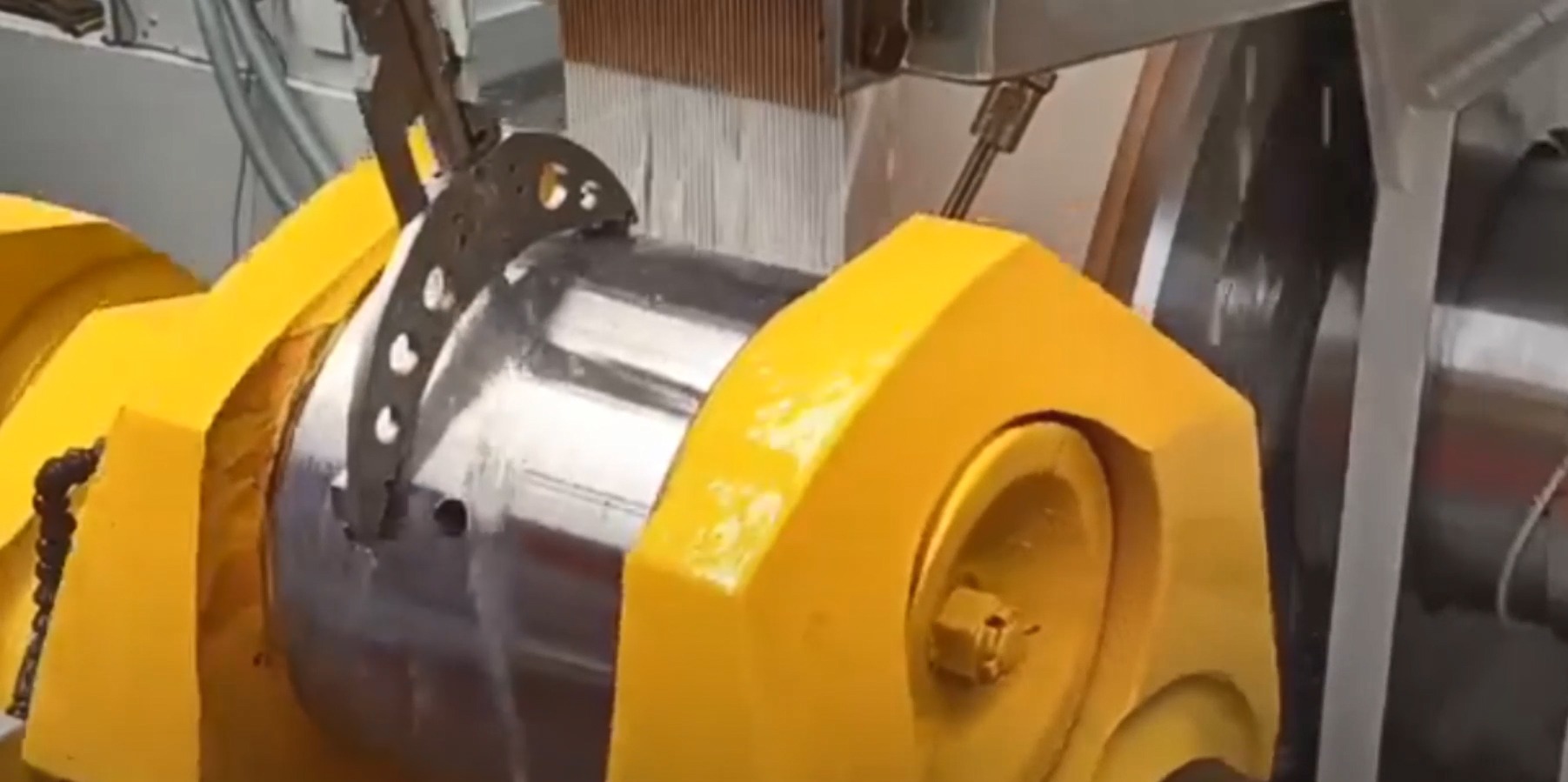

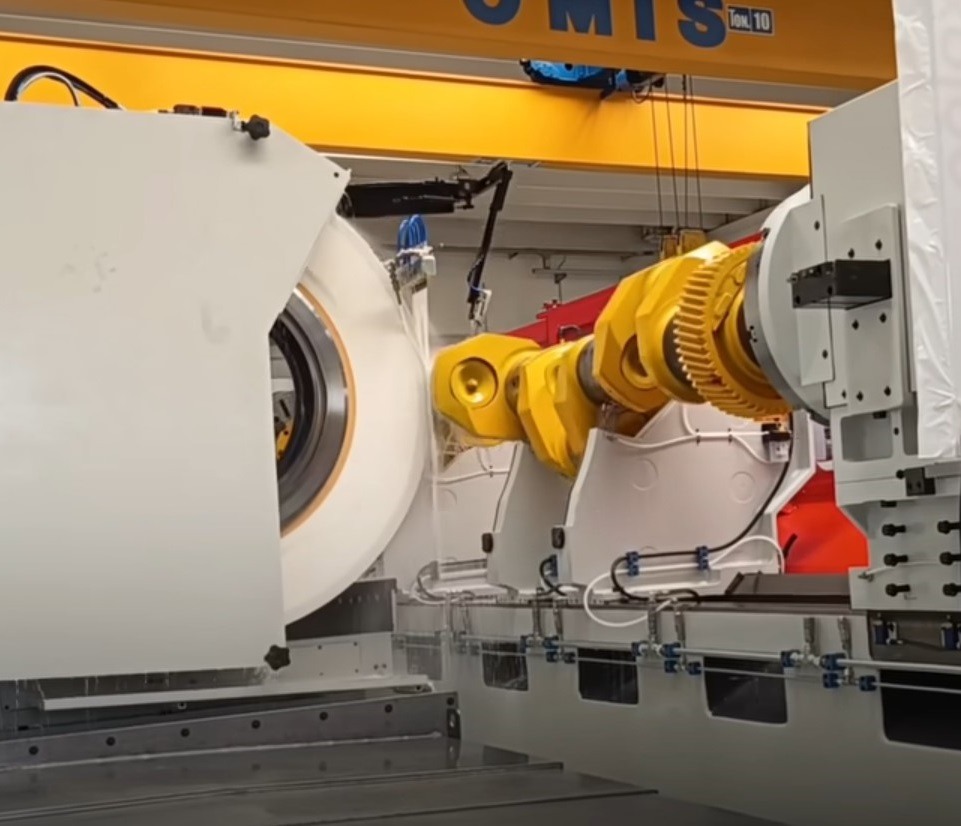

CNC ORBITAL GRINDING & FINAL POLISHING

Precision CNC orbital grinding restores OEM journal dimensions, roundness, surface polishing

06

FINAL INSPECTION & CERTIFICATION

PCN Level II personnel perform final NDT and dimensional verification, ensuring OEM compliance and full traceability through certified reporting

Why Rely on KIMI

Class-Approved Expertise. Advanced In-House Restoration.
2K
+

Crankshafts Restored by Laser Cladding

7,5
m

Maximum Crankshaft Length

up to 10
mm

Journal Diameter Restoration

BV-approved Repair Procedure

Beyond Conventional Marine Engine Repairs

We Restore What Others Replace
Request a Quotation

News

FAQs

KIMI can recondition crankshafts up to 7,5 meters in length, with laser cladding restoration up to 10 mm radial build-up on journals.

KIMI, in collaboration with the National Technical University of Athens, established a crankshaft repair procedure using laser cladding in 2013.
Today, KIMI combines Bureau Veritas–approved laser cladding, state-of-the-art precision grinding, and full in-house capabilities to deliver fast, reliable, and OEM-compliant crankshaft restoration, with proven results on 2,000+ components.

Yes, KIMI performs crankshaft straightening to correct bending and restore proper alignment. In addition, hardness is restored and verified through controlled processes and certified testing, ensuring the crankshaft meets OEM mechanical properties and operational requirements.

KIMI repairs crankshafts for a wide range of 4stroke marine engines, including major manufacturers such as MAN Energy Solutions, Wärtsilä, Caterpillar / MaK, Hyundai Heavy Industries (HiMSEN), and other medium- and high-speed engine types used in marine and power generation applications.

KIMI can provide solutions even in cases of extreme crankshaft damage, with typical lead times of 12–20 days, depending on the scope of work. In contrast, purchasing a new crankshaft can take up to 3 months and comes at a significantly higher cost.
This makes reconditioning a faster, more efficient, and highly cost-effective alternative.
